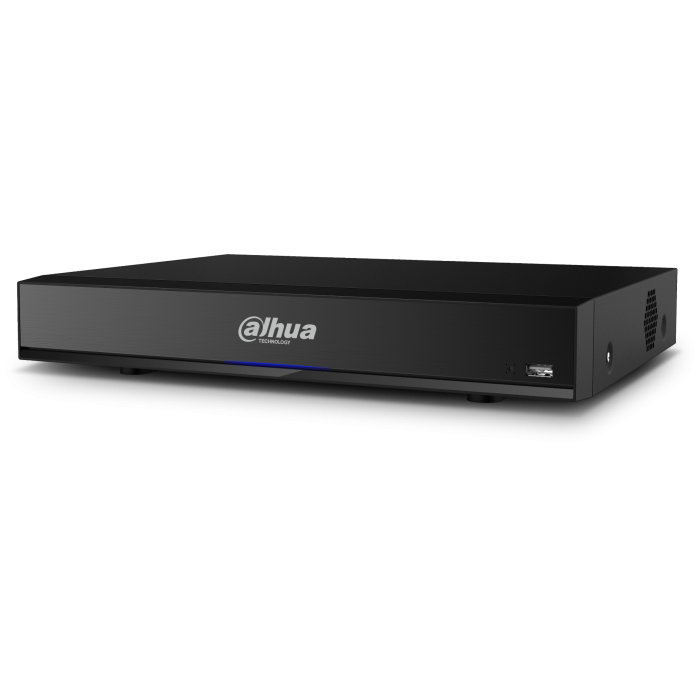

Dahua XVR7104HE-4KL-X 4 Channel Penta-Bird 4K Digital Video Recorder with 1TB

In stock
SKU
DH-XVR7104HE-4KL-X
€252.09 €204.95

Dahua's DH-XVR7104HE-4KL-X is a fantastic 4K 4-Channel Recorder, and is part of Dahua's XVR Pro Series.

With the surveillance operators pursuing to HD/UHD which further adds the storage and transmission cost, HDCVI H.265+/H.265 has been released to incredibly decrease the required bitrate while ensuring the video quality in realizing high resolution surveillance such as 4MP/4K. Designed as a collection of intelligent encoding algorithm based on H.265, H.265+ significantly improves encoding efficiency and save bandwidth/storage cost, which fully meet the needs of users facing budget constraints who both require quality and performance.


Besides smart codec, the series supports various advanced functions like IoT and POS functionalities, making the whole system smarter and more convenient which is a perfect choice for mid to large-scale business and projects where both high reliability and flexibility are required.

Click Here for PDF Specifications!



Key Features:

  • > H.265+/H.265 dual-stream video compression
  • > Supports HDCVI/AHD/TVI/CVBS/IP video inputs
  • > Supports 8 channels of IPC access, each channel up to 8MP input; Max 32Mbps Incoming Bandwidth
  • > IoT & POS functionalities
  • > Smart Search and Intelligent Video System


SPECIFICATIONS:

System:

Main Processor

Embedded Processor

Operating System

Embedded LINUX

Video and Audio:

Analog Camera Input

4 Channel, BNC

HDCVI Camera

4K, 6MP, 4MP, 1080P@25/30fps, 720P@50/60fps, 720P@25/30fps

AHD Camera

5MP, 4MP, 3MP, 1080P@25/30, 720P@25/30fps

TVI Camera

5MP, 4MP, 3MP, 1080P@25/30, 720P@25/30fps

CVBS Camera

PAL/NTSC

IP Camera Input

4+4 Channel, each channel up to 8MP

Audio In/Out

4 Channel Input, 1 Channel Output, RCA

Two-way Talk

Reuse audio in/out, RCA

Recording:

Compression

H.265+/H.265/H.264+/H.264

Resolution

4K, 6MP, 5MP, 4K-N, 4MP, 3MP, 4M-N, 1080P, 720P, 960H, D1, CIF

Record Rate

Main stream: the 1st channel 4K(1~7fps), 6MP(1~10fps), 5MP(1~12fps), 4MP/3MP(1~15fps), others 4K-N(1~7fps), 4MP/3MP(1~15fps);

4M-N/1080P/720P/960H/D1/CIF(1~25/30fps)

Sub steram:960H(1~15fps);

D1/CIF(1~25/30fps)

Bit Rate

32Kbps ~ 6144Kbps Per Channel

Record Mode

Manual, Schedule (General, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop

Record Interval

1 ~ 60 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec

Audio Compression

AAC(only for the 1st channel), G.711A, G.711U, PCM

Audio Sample Rate

8KHz, 16 bit Per Channel

Audio Bit Rate

64Kbps Per Channel

Display:

Interface

1 HDMI, 1 VGA

Resolution

HDMI:2560×1440, 1920×1080, 1280×1024, 1280×720

VGA: 1920×1080, 1280×1024, 1280×720

Multi-screen Display

When IP extension mode not enabled: 1/4

When IP extension mode enabled: 1/4/6

OSD

Camera title, Time, Video loss, Camera lock, Motion detection, Recording

Network:

Interface

1 RJ-45 Port (100M)

Network Function

HTTP, HTTPS, TCP/IP, IPv4/IPv6, Wi-Fi, 3G/4G, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm Server, P2P,IP Search (Supports IP camera, DVR, NVS, etc.)

Max. User Access

128 users

Smart Phone

iPhone, iPad, Android

Interoperability

ONVIF 16.12, CGI Conformant

Video Detection and Alarm:

Trigger Events

Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips

Video Detection

Motion Detection, MD Zones: 396 (22 × 18), Video Loss,Tampering and Diagnosis

Alarm input

8

Relay Output

3

Playback and Backup:

Playback

1/4

Search Mode

Time /Date, Alarm, MD and Exact Search (accurate to second)

Playback Function

Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom

Backup Mode

USB Device/Network

Storage:

Internal HDD

1 SATA Port, up to 10TB capacity for each disk

eSATA

N/A

Auxiliary Interface:

USB

2 USB Ports (2 USB 2.0 )

RS232

N/A

RS485

1 Port, for PTZ Control

Electrical:

Power Supply

DC12V/2A

Power Consumption

(without HDD)

<10W

Construction:

Dimensions

Mini 1U, 325mm×255mm×55mm (12.8" x 10" x 2.2")

Net Weight

(without HDD)

1.2kg (2.6lb)

Gross Weight

1.9kg (4.2lb)

Installation

Desktop installation

Environmental:

Operating Conditions

-10°C ~ +55°C (+14°F ~ +131°F), 10% ~ 90% RH

Storage Conditions

-20°C ~ +70°C (-4°F ~ +158°F) , 0~ 90% RH

Third-party Support:

Third-party Support

Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and more

Certifications:

Certifications

FCC: Part 15 Subpart B

CE: CE-LVD: EN 60950-1/IEC 60950-1

CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024

UL: UL 60950-1
