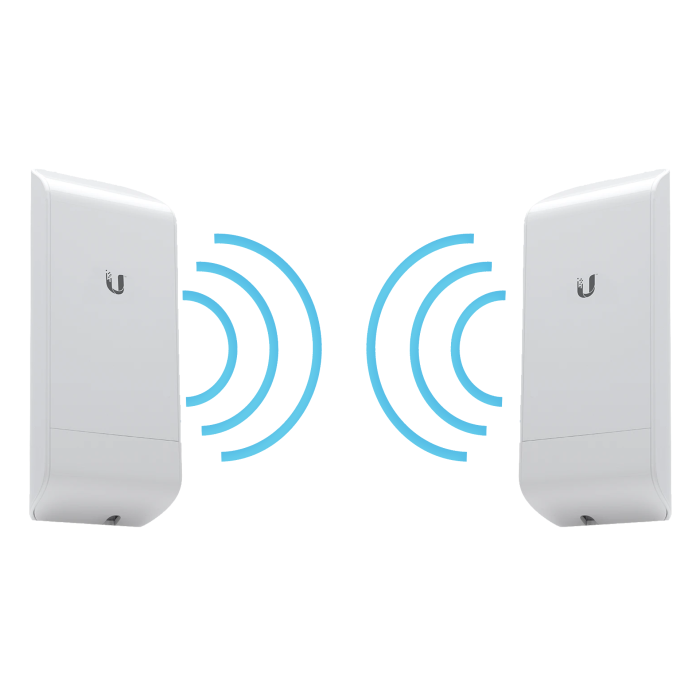

3km IP Wireless Link Kit for Cow-Calving Cameras - Programmed

WI-CPE513P-KIT Hardware Version: V3
Features
Easy to Setup
No software setup is required, and once powered on, the PTP application is connected automatically. The DIP switch,
LED display and quick pairing function button can help with quick pairing.
Ultra-bandwidth
Offer wireless rate up to 300Mbps by adopting 5GHz solution, and 100Mbps RJ45 port, greatly improves the efficiency
of data transmission.
Long-Distance Data Transmission up to 5km
Provide long-distance wireless network transmission up to 5km with a high-performance 15dBi Directional Antenna,
making it an ideal choice for outdoor wireless network transmission.
PTP/PTMP
Support two networking modes, PTP (point to point) and PTMP (point to multi-point), which flexibly suiting for different
outdoor network solutions.
IEEE 802.3at PoE Power Supply and IEEE 802.3af PoE Out
Support IEEE 802.3at PoE power supply and 802.3af PoE Output provides PoE power for IP Camera, which can be flexibly
installed according to the application scenarios.
Wi-Tek Cloud Management
Wi-Tek Cloud provide reliable performance, visual management, and remote access which is easy to operate and maintain.

Specifications
Products WI-CPE513P-KIT
Hardware Version V3
Hardware Features
Interface
1*10/100Mbps WAN (PoE IN) RJ45 port
1*10/100Mbps LAN (PoE Out) RJ45 port
Frequency Range
5.150 ~ 5.850GHz (Channel 36~64, 100~144, 149~165)
*Please follow national regulations to select the appropriate frequency.
Compliant Standards IEEE 802.11a/n
Spatial Streams 2x2, MU-MIMO
Maximum Wireless Rate 300Mbps@5GHz
Antenna Gain Build-in 15dBi directional antenna
Half Power Beamwidth (Typ.) Horizontal: 30°, Vertical: 30°
Transmit Power 24±2dBm max. (adjustable)
Recommended Distance 5km
LED Indicator 1*SYS, System indicator, 1*WAN port indicator, 1*LAN port indicator, 1*5G indicator
DIP Switch
H: Base station mode, supports wireless point-to-point and point-to-multipoint long-distance
transmission.
C: CPE mode, a receiving point for connecting a wireless base station.
LED Display Displays the current working mode and pairing group number.
Quick Pairing Function Button
“+” button: Press and hold the button for 3s to enable the pairing group adjustment function. When
the LED display starts to blink, press the button to raise the pairing group number.
“-” button: When the LED display starts to blink, press the button to reduce the pairing group
number.
RST button Long press over 5 seconds: Restore the factory default configuration.
Power Supply IEEE 802.3at PoE IN
Power Consumption <9W (Without PoE Out)
Dimensions 260*88*56mm
Weight 0.40kg*2
Package Dimensions 340*218*98mm
Package Weight 1.6kg
Installation Wall/Pole mounted
Material Outdoor UV Stabilized Plastic
Reliability
ESD Protection Air discharge: ±8kV, Contact discharge: ±4kV
Lightning Protection 4kV
Operating Environment -40°C to 70°C, 5%~95% (non-condensation)
Storage Environment -40°C to 85°C, 5%~95% (non-condensation)
Ingress Protection IP65
Datasheet 3
Software Features
Products WI-CPE513P-KIT
Hardware Version V3
Software Features
System Status System information, Wireless information, Radio status, Flow Chart, Wireless Terminal Station
Operating Mode
Base Station, CPE
Repeater, WISP Mode (Switch the paring mode to control by web)
WAN Configuration Dynamic IP, Static IP
Wireless Configuration
Wireless enable/disable, Hide SSID
Wireless Security: OPEN, WPA-TKIP, WPA2-AES, WPA/WPA2-Mixed, WPA-Enterprise, WPA2-
Enterprise
Radion Parameter
WMM, Weak Signal Rejection Threshold, Wireless Channel, Tx Power Control
Channel Bandwidth: Auto/20/40MHz
System Tools Speed Test, Ping Watchdog, Scheduled Reboot, NTP, Ping, Traceroute
Management Local WEB management, Remote Wi-Tek Cloud management
